LOOKING 4 HOLDEN VAN ARCHWAY TEMPLATE POST

Post by Ramble on 23/10/2009, 1:52 am

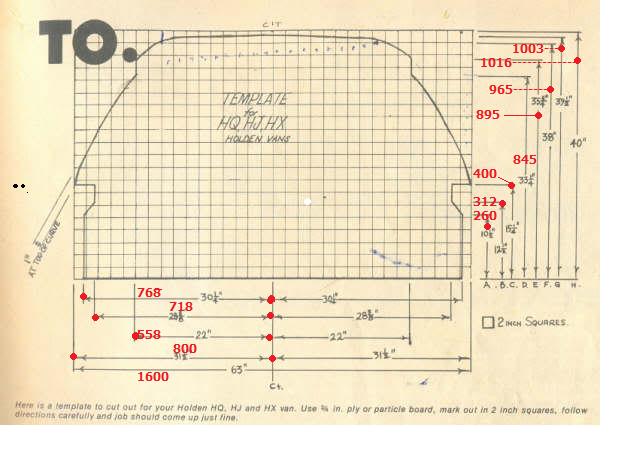

Hey guys. somebody posted (sorry cant member who scratch ) posted a scale templete of an arch for the holden van but i cant seem to find it anywhere on here.
If you can remember where the post is please let me know as it will save me some grunting and growning in the back with the cardboard and scissors,

Thanks guys.

Ramble

Posts : 566
Join date : 2009-02-23
Location : mid nth coast nsw

View user profile

Back to top Go down

Re: LOOKING 4 HOLDEN VAN ARCHWAY TEMPLATE POST

Post by soundman on 23/10/2009, 2:16 am


soundman

Posts : 316
Join date : 2008-10-23
Location : The Driver's seat... or in the rear.

View user profile

Back to top Go down

Re: LOOKING 4 HOLDEN VAN ARCHWAY TEMPLATE POST

Post by Vannin on 23/10/2009, 3:29 am

Murray (Wicked) has access to CNC cut archways, if thats any good to you?

Vannin

Posts : 567
Join date : 2009-05-08
Age : 47
Location : Noble Park North (SE Melbourne) WASTELANDS VANNER

View user profile

Back to top Go down

Re: LOOKING 4 HOLDEN VAN ARCHWAY TEMPLATE POST

Post by Ramble on 23/10/2009, 8:26 am

Hey thanks for that guys. Ive copied it onto my comp. now so i know where it is when i need it.

Thanks again... Very Happy

Ramble

Posts : 566
Join date : 2009-02-23
Location : mid nth coast nsw

View user profile

Back to top Go down

Re: LOOKING 4 HOLDEN VAN ARCHWAY TEMPLATE POST

Post by Ben79hz on 28/12/2009, 11:16 am

Just wondering if anyone can read the measurement for B,its 12" something, and also the 4th line from the bottom, its 28"something,I can't make out the fraction numbers?any help is greately appreaciated.

Ben79hz

Posts : 66
Join date : 2008-08-19
Location : East coast vanner-Blacktownish

View user profile

Back to top Go down

Re: LOOKING 4 HOLDEN VAN ARCHWAY TEMPLATE POST

Post by Guest on 28/12/2009, 11:25 am

Hi Ben
B = 12 1/2"
4th line from bottom is 28 3/8"

Guest
Guest


Back to top Go down

Re: LOOKING 4 HOLDEN VAN ARCHWAY TEMPLATE POST

Post by Ben79hz on 28/12/2009, 11:53 am

Thanks Mate,I just couldn't make them out,I guess its time to throw more money at the van again. Very Happy

Ben79hz

Posts : 66
Join date : 2008-08-19
Location : East coast vanner-Blacktownish

View user profile

Back to top Go down

Re: LOOKING 4 HOLDEN VAN ARCHWAY TEMPLATE POST

Post by Guest on 31/12/2009, 1:33 am

now... how do we change it to metric

Guest
Guest


Back to top Go down

Re: LOOKING 4 HOLDEN VAN ARCHWAY TEMPLATE POST

Post by Ramble on 31/12/2009, 2:36 am

Van wrote:now... how do we change it to metric

Ive done the conversion and will post it tonight for you, just headin out now and dont have time to scan it.

Ramble

Posts : 566
Join date : 2009-02-23
Location : mid nth coast nsw

View user profile

Back to top Go down

Re: LOOKING 4 HOLDEN VAN ARCHWAY TEMPLATE POST

Post by Ben79hz on 31/12/2009, 7:47 am

Just a word of warning, measurement D (33.25") didn't suit my HZ van,Found it to be 0.75" to tall, and the inside of my roof gutters are at an angle and not straight as this template suggests.It might just be my van thats wrong, but double check yours before making an archway.
Also enjoy fitting them into position,great fun on your own. Rolling Eyes Rolling Eyes Rolling Eyes Rolling Eyes

Ben79hz

Posts : 66
Join date : 2008-08-19
Location : East coast vanner-Blacktownish

View user profile

Back to top Go down

Re: LOOKING 4 HOLDEN VAN ARCHWAY TEMPLATE POST

Post by Odd_One_Out on 31/12/2009, 11:01 am

Van wrote:now... how do we change it to metric

You can find conversion calculaters for just about anything on google

Odd_One_Out

Posts : 33
Join date : 2009-03-11

View user profile

Back to top Go down

Metric conversion

Post by Ramble on 31/12/2009, 3:09 pm



I converted inces to MM's and found its easier if you 'rough it' out
on a large piece of cardboard first.that way if its not right you can
correct it b4 tracing onto your arch material.

Ramble

Posts : 566
Join date : 2009-02-23
Location : mid nth coast nsw

View user profile

Back to top Go down

Re: LOOKING 4 HOLDEN VAN ARCHWAY TEMPLATE POST

Post by Ramble on 31/12/2009, 3:16 pm

just looking at the mesurements on the bottom and thought it might be a bit confusing
ok All the figures on the bottom are mirrored from the centre line so just mesure from the centre the same both side,,,EXCEPT the very bottom one at 1600mm,thats 'all up' for the bottom

Ramble

Posts : 566
Join date : 2009-02-23
Location : mid nth coast nsw

View user profile

Back to top Go down

Re: LOOKING 4 HOLDEN VAN ARCHWAY TEMPLATE POST

Post by Guest on 1/1/2010, 12:31 pm

thank you for that.

Guest
Guest


Back to top Go down

Re: LOOKING 4 HOLDEN VAN ARCHWAY TEMPLATE POST

Post by glen davis on 1/1/2010, 4:45 pm

hq maybe different to hj and hx

glen davis

Posts : 3
Join date : 2009-12-25

View user profile

Back to top Go down

Re: LOOKING 4 HOLDEN VAN ARCHWAY TEMPLATE POST

Post by Ramble on 2/1/2010, 1:57 am

Van wrote:thank you for that.
No probs, just hope you understand my mesurements

by glen davis on 2/1/2010, 1:45 am
hq maybe different to hj and hx

I dont think theres much difference though.
